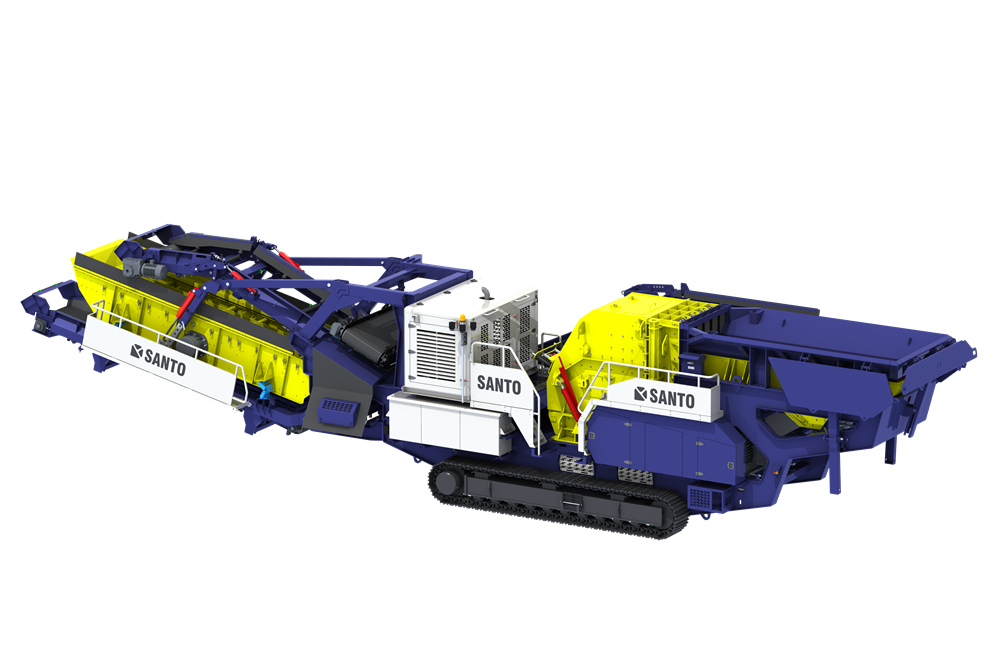

The Tracked mobile impact crusher plant of SANTO can be widely used in mining, tailings treatment, infrastructure construction, solid waste treatment fields.
A wide range of models are available, with a production capacity of up to 700 tons/hour. Large feed and high production capacity. Adapts to all types of primary or secondary crushing processes.
1. The crusher has high efficiency crushing
High wear-resistant material, large feeding size, large crushing chamber, higher output capacity and more stability
2. The crushed finished product has good cubic shape
The heavy-duty integral rotor is adopted, the moment of inertia is large, and the finished material after crushing is uniform and the particle shape is good
3.Super large hopper
The side and tail of the hopper can be hydraulically folded, and the volume can be increased by 50% after expansion
4. The operation is simple and easy to maintain
The main frame can be opened hydraulically, the side belt conveyor can be hydraulically folded, and the all-round walkway guardrail is equipped to make the maintenance easy.
5. It can quickly transfer the operation
It adopts intelligent, integrated and modular configuration, and has strong on-site passing ability, which can quickly adapt to a variety of complex construction environments such as mountains and wetlands.
6.Various configurations,
You can choose to add a vibrating screen to complete the primary screening of materials.
Tracked Type Mobile Impact Crusher Plant | ||
Model | ST-260I | |
Vibrating Feeder | Model | 2700x1200 |
Power (KW) | 2x3.7 | |
Impact Crusher | Model | I260 |
Max. Feed size(mm) | 700 | |
Power (KW) | 250 | |
Whole Machine | Capacity (TPH) | 150-300 |
Power (KW) | 304 | |
Transfer size (mm) | 2100x3800x3900 | |
Weight (T) | 65 |
